Garden Lights

Posted by Fred C. (W6BSD) on Jun 15 2020

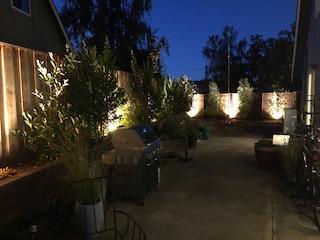

At home, I wanted to install lights along the fence to create an ambiance in my backyard. I wanted to have the lights turn on at sunset and turn off a few hours later, entirely automatically. The last requirement was to be able to control the system remotely. I also wanted the option to create a "light show" for special occasions, such as holidays or parties.

Garden Lights

Hardware

For this project, I used a Raspberry-Pi Zero W that I wasn't using for anything else. Since it runs Linux, I could use the network stack and use NTP1 to synchronize the internal clock. I could also use python for my program. Since the final box would be installed outdoors in my backyard, using ssh to investigate any problems would be a huge plus.

The lights controller is built entirely around off the shelf components:

Hardware-wise this project was easy to build. Where I had more fun was on the software side. To write the software, I used python. I also used greenlets. Greenlets provide concurrency. Several parts of the code can run simultaneously but not in parallel. Think of lightweight threads.

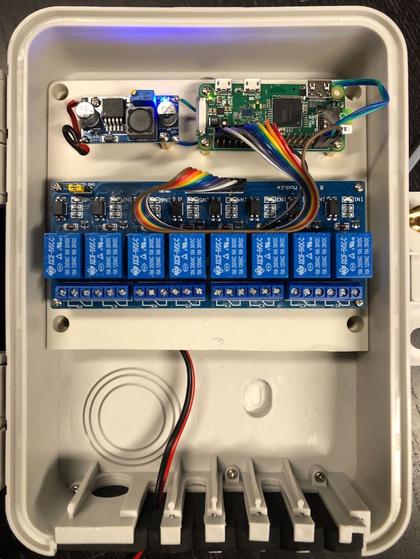

Light Box

Software

The core of this program is a CronTab class responsible for running Tasks or Events. Tasks are jobs that run only once at a specific time. Events are recurrent jobs.

In the following example, the Task will turn the lights on at sunset. The lights are turned off at 10:30 daily. The function light_show is called daily at the top of the hours at 9, 10, and 11 PM.

cron = CronTab(
    Task(lights.on, sun.sunset.minute, sun.sunset.hour),
    Event(lights.off, 30, 23),
    Event(light_show, 0, [21, 22, 23], lights=lights)
)

To determine the sunset time, I use an online service called sunset sunrise. This service offers a free API that provides sunset and sunrise times for a given latitude and longitude. There is a limit on the number of requests you can make to the service. Our lights project only makes a handful of requests per week, which is way under the quota.

To run this program, create a JSON configuration file stored on /etc/lights.json. The fields latitude and longitude are used to determine the sunset time. The field ports contains the GPIO2 pin controlling each light.

Example:

{
    "local_tz": "America/Los_Angeles",
    "ports": [ 9, 11, 0, 5, 6, 13, 19, 26 ],
    "latitude": 37.4650,
    "longitude": -122.2475
}

You can find the full program on my GitHub account.

The next version of this program will read the sequencing of the lights from a configuration file.
